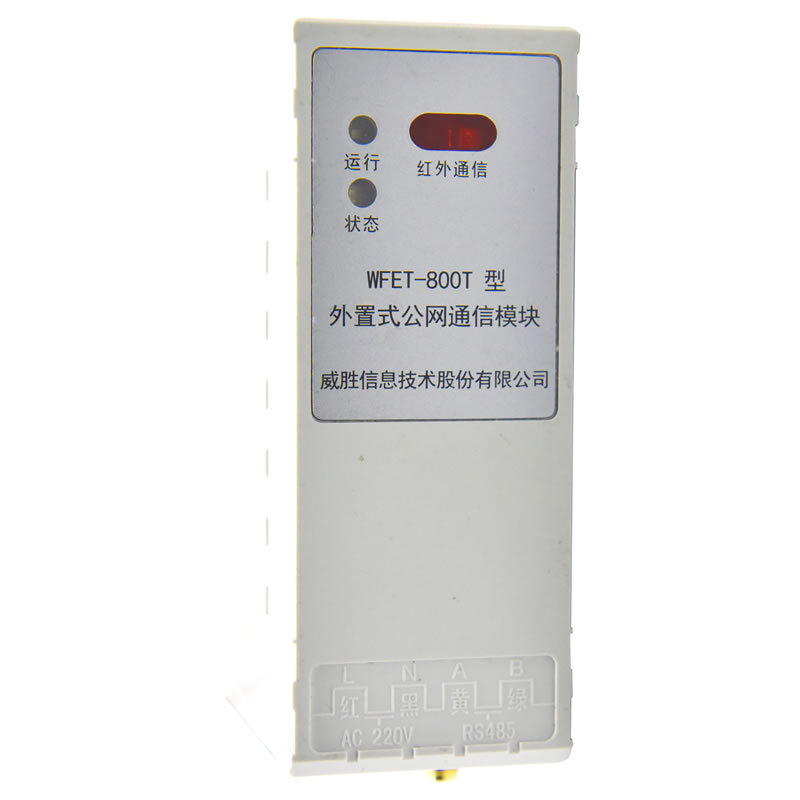

Delicate Design 4G Communication Module Convenient On Site Installation WFET-800T

Place of Origin:Changsha, Hunan
Brand Name:Willfar Information Techonology Co., Ltd.
Certification:DL/T 645-1997, DL/T 645-2007
Model Number:WFET-800T
Minimum Order Quantity :100
Packaging Details :Carton Packaging
Delivery Time :30 days
Payment Terms :T/T
Supply Ability :2000 per day (based on the number of the order)
Detail Information
Power Dissipation:≤3WOperating Temperature:-25 °C ~ + 60 °C

High Light:

gprs module ,

wireless networking module

Product Description

- WFET-800T external 4G module products adopt mature and stable 32-bit high-performance processor hardware platform and components of well-known brands.

- A single-chip scheme is adopted

- Integrate MCU and 4G, to support 4G Netcom;

- Delicate designed and achieved technological breakthroughs in machine stability, hardware reliability, software fault-tolerant ability and technological advancement.

- The products have the characteristics of powerful function, easy to operate, stable system, convenient maintenance, small size, convenient on-site installation and so on.

- It could provide an ideal solution for remote transmission of energy efficiency data collection at decentralized metering points.

Technical Parameters
Master Station SpecificationQ/CSG 11109004-2013
Electricity SpecificationDL/T 645-1997, DL/T 645-2007
Power Supply

Nominal Voltage: 220V;

Frequency: 50Hz

Support Network2G/3G/4G, support all network operators
Local Interface

1-way for meter reading, RS-485 interface,

1-way for modulated infrared light,

Remote Upgrade

Multi-process mode,

The upgrade does not affect the normal work,

Support breakpoint resuming

Storage Capacity

Bulky Capacity FLASH,

Data could be stored for 10 yrs when power outage happening

EnvironmentRelative Humidity: ≤95%
Normal Working Temperature: -25℃~+60℃
Limit Working Temperature: -40℃~+70℃
Power Consumption (Static)≤3W
StructureDimension: 100mm×50mm×40mm (L x W x H)
Sealed Design, Waterproof, UV resistant, Flame retardant

1. Can be connected to various domestic and international meter protocols and specification at the same time.

2. Safe and reliable control technology with multi-level protective measures;

3. Active fault reporting, which can locate and solve the fault instantly.

4. The use of large-capacity electronic disk and embedded file management technology can ensure the preservation of historical data for a long time.

5. Function module remote upgrade and remote maintenance, flexibly meet the requirements of system expansion on function in the future;

6. Sealed design

7. Waterproof and UV-resistant, flame retardant material.
