AMI RF Mesh Communication Module Wireless Networking Module DC2-RSF1

Place of Origin:Changsha, Hunan
Brand Name:Willfar Information Techonology Co., Ltd.
Model Number:DC2-RSF1
Minimum Order Quantity :100
Packaging Details :Carton Packaging
Delivery Time :30 days
Payment Terms :T/T
Supply Ability :2000 per day (based on the number of the order)
Detail Information
Color:GreyBrand:Willfar Information
Place Of Origin:Changsha HunanCommunication Mode:Wi-Sun
Application:Single Phase MeterUn-regulated Voltage:12.0~16.0V
Relative Humidity:5% ~ 95%, Non-condensingLevel Of Protection:IPv6
Operating Temperature:-40°C ~ +70°C

High Light:

4g module ,

wireless networking module

Product Description

- The DC2-RSF1 RF Mesh Communication Module is based on SoC (System on Chip) platform as configured for energy meters and other devices to be used in Willfar AMI Solution.

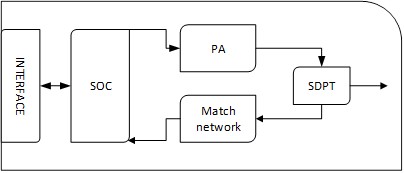

A basic block diagram of the module is shown in Figure as below:

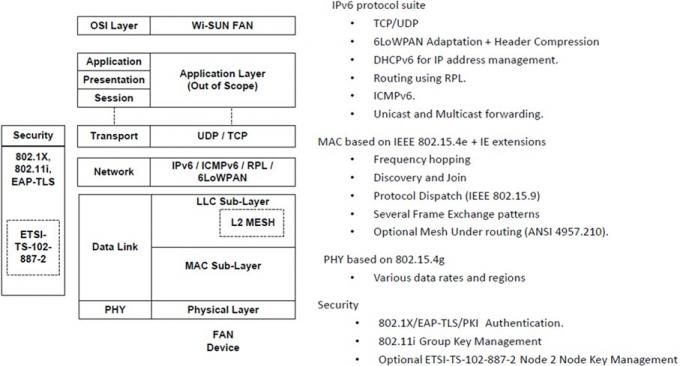

- Willfar DC2-RSF1 conforms to Wi-SUN FAN Specification, which is open-standards based secured, interoperable communications for large scale IoT for Smart Utility and Smart City networks.


- DC2-RSF1 integrates SWMW920S Radio Module produced by Zhuhai Zhonghui Microelectronics Co., Ltd (a sub company of Willfar), whose certification identifier in Wi-SUN Alliance is WSA 0215.

- In a typical application, the module will be installed in electricity metering applications.

- The module will communicate with other network devices. This can include other meters, relays, access points, Distribution Automation devices and other host devices.

- DC2-RSF1 could be adopted to Single Phase Electric Meter

Technical Parameters
900 MHz NAN transceiver
Frequency Range902 to 928 MHz
Data Rate (kbps)50-300kbps
Spreading TechniqueFrequency Hopping
transmitter OutputUp to 30 dBm/1W
Receive Sensitivity-99 dBm @100kbps for 1% PER
ModulationFSK, GFSK
NAN Network
Addressing8-byte MAC Address
Level of ProtectionIPv6
ConfidentialityAES-256 Encryption
AuthenticationECDSA & RSA Signatures
Application SecurityDLMS Greenbook 7 Suite 0
Meter (LVTTL) ProtocolANSI C12.18 & DLMS HDLC & RFC1662
Last Gaspw/ backup power to support 90 sec last gasp
FirmwareOver The Air upgradable
Operating temperature-40°C ~ +70°C
Relative Humidity5% ~ 95%, non-condensing
Operating State CurrentReceive Mode: (1) Typical 60mA                                        (2) Maximum 70mA
transmit 900MHz: (1) Typical 400mA                                        (2) Maximum 500mA
Last Gasp Alarm: (1) Typical 15mA                                        (2) Maximum 20mA
Power SupplyUn-regulated Voltage: 12.0~16.0V
Ripple: ±75mV
transient Response: ±200mV

1. Conforms to Wi-SUN FAN specification

Feature complete specification is approved
Supports IEEE802.15.4g/4e PHY/MAC, 6LowPAN, and IPv6
Supports multi-hopping operation and frequency hopping
Supports encryption (AES) and authentication (802.1x)

2. Programmable frequency band: 902~928MHz US/BZ and PHY operational mode.

3. Highly Secured: certificate based authentication

4. Easy to install and maintain: self-forming/healing mesh network, upgradeable

5. Longevity: open standards, upgradeable

6. Ability to scale easily to thousands of nodes: optimal use of frequency band

7. Reliable and resilient: mesh, multiple channels, demonstrated interference tolerance

8. Long range: sub GHz, mesh

9. Low latency: high data rates, low channel utilization

10. Energy Efficient: short transmission time, long battery life leaf nodes

11. Low Cost: open standards, multiple silicon vendors

12. Multi-vendor Interoperability: certification program for complete communications protocol stack
