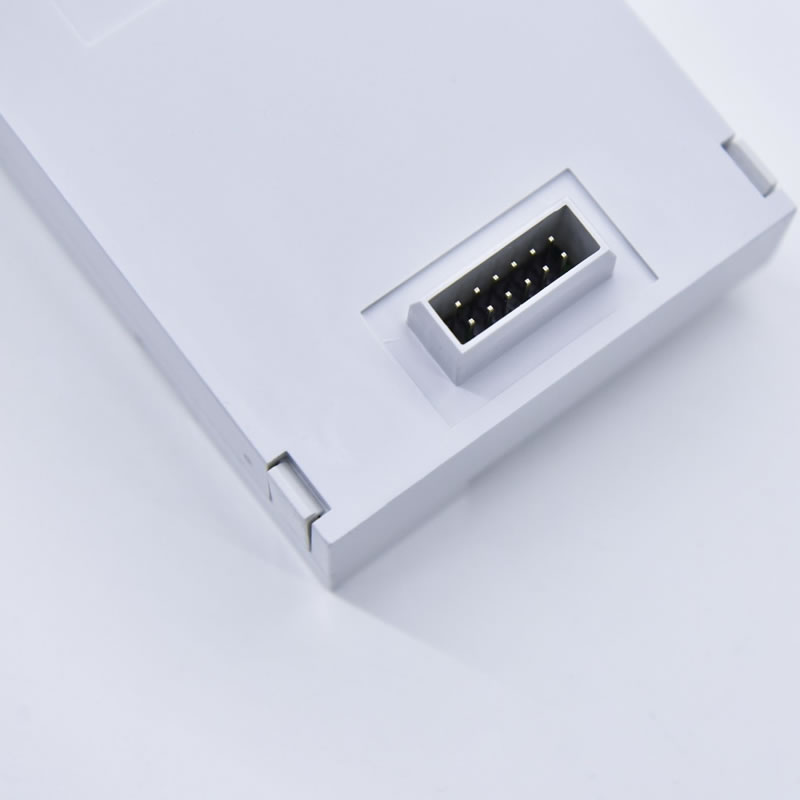

Highly Secured RF Remote Control Module Self Forming / Healing Mesh Network DC2-RTF1
| Place of Origin: | Changsha, Hunan |
|---|---|
| Brand Name: | Willfar Information Techonology Co., Ltd. |
| Certification: | Wi-SUN |
| Model Number: | DC2-RTF1 |
| Minimum Order Quantity : | 100 |
| Packaging Details : | Carton Packaging |
| Delivery Time : | 30 days |
| Payment Terms : | T/T |
| Supply Ability : | 2000 per day (based on the number of the order) |
Detail Information
| Color: | Grey | Brand: | Willfar Information |
|---|---|---|---|
| Place Of Origin: | Changsha Hunan | Communication Mode: | Wi-Sun |
| Application: | Three Phase Meter | Modulation: | FSK/GFSK |
| Relative Humidity: | 5% ~ 95%, Non-condensing | Level Of Protection: | IPv6 |
| Confidentiality: | AES-256 Encryption | ||
| High Light: | gprs module , wireless networking module | ||
Product Description
- The DC2-RTF1 RF Mesh Communication Module is based on SoC (System on Chip) platform as configured for energy meters and other devices to be used in Willfar AMI Solution.

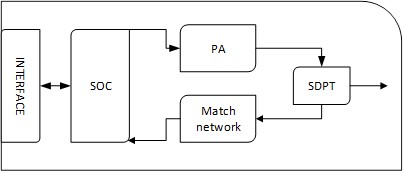

A basic block diagram of the module is shown in Figure as below:
- Willfar DC2-RTF1 conforms to Wi-SUN FAN Specification, which is open-standards based secured, interoperable communications for large scale IoT for Smart Utility and Smart City networks.
- DC2-RTF1 integrates SWMW920S Radio Module produced by Zhuhai Zhonghui Microelectronics Co., Ltd (a sub company of Willfar), whose certification identifier in Wi-SUN Alliance is WSA 0215.
- In a typical application, the module will be installed in electricity metering applications.
- The module will communicate with other network devices. This can include other meters, relays, access points, Distribution Automation devices and other host devices.
- DC2-RTF1 could be adopted to Three Phase Electric Meter
Technical Parameters
| Item | Parameter |
| 900 MHz NAN transceiver | |
| Frequency Range | 902 to 928 MHz |
| Data Rate (kbps) | 50-300kbps |
| Spreading Technique | Frequency Hopping |
| transmitter Output | Up to 30 dBm/1W |
| Receive Sensitivity | -99 dBm @100kbps for 1% PER |
| Modulation | FSK, GFSK |
| NAN Network | |
| Addressing | 8-byte MAC Address |
| Protocol | UDP |
| Level of Protection | IPv6 |
| Confidentiality | AES-256 Encryption |
| Authentication | ECDSA & RSA Signatures |
| Application Security | DLMS Greenbook 7 Suite 0 |
| Functionality | |
| Meter (LVTTL) Protocol | ANSI C12.18 & DLMS HDLC & RFC1662 |
| Last Gasp | w/ backup power to support 90 sec last gasp |
| Firmware | Over The Air upgradable |
| Operating temperature | -40°C ~ +70°C |
| Relative Humidity | 5% ~ 95%, non-condensing |
| Operating State Current | Receive Mode: (1) Typical 60mA (2) Maximum 70mA |
| transmit 900MHz: (1) Typical 400mA (2) Maximum 500mA | |
| Last Gasp Alarm: (1) Typical 15mA (2) Maximum 20mA | |
| Power Supply | Un-regulated Voltage: 12.0~16.0V |
| Ripple: ±75mV | |
| transient Response: ±200mV | |
Features
1. Recognized in Wi-SUN FAN specification
- Feature complete specification is approved
- Supports IEEE802.15.4g/4e PHY/MAC, 6LowPAN, and IPv6
- Supports multi-hopping operation and frequency hopping
- Supports encryption (AES) and authentication (802.1x)
2. Programmable frequency band: 902~928MHz, US/BZ/PHY operational mode.
3. Highly Secured: certificate based authentication
4. Easy to install and maintain: self-forming/healing mesh network, upgradeable
5. Longevity: allow remote or online upgrade
6. Ability to scale easily to thousands of nodes: optimal use of frequency band
7. Reliable and resilient: multiple channels, demonstrated interference tolerance
8. Long range: sub GHz, mesh
9. Low latency: high data rates, low channel utilization
10. Energy Efficient: short transmission time, long battery life leaf nodes
11. Low Cost: open standards, multiple silicon vendors
12. Multi-vendor Interoperability: certification program for complete communications protocol stack
