External GPRS Module For Smart Meter GPRS Data Collection System

Place of Origin:Changsha, Hunan
Brand Name:Willfar Information Techonology Co., Ltd.
Model Number:WS-18e
Minimum Order Quantity :100
Packaging Details :Carton Packaging
Delivery Time :30 days
Payment Terms :T/T
Supply Ability :2000 per day (based on the number of the order)
Detail Information
Nominal Voltage:12V DCBrand:Willfar Information
Maximum Current:800mAVoltage Range:5V DC~32V DC
Operating Temperature:-25 °C ~ + 75 °CRelative Humidity:≤95%, Non-condensing
High Light:

4g module ,

wireless networking module

Product Description

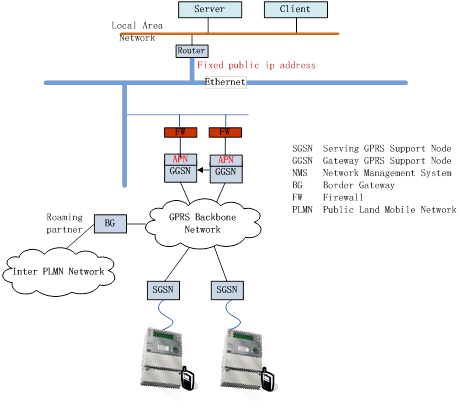

- The General Packet Radio Service (GPRS) is a GSM­based wireless packet switched technology used to provide end­to­end wide area wireless IP connections.

- GPRS communication module is a high­speed data processing technology which transfers data to users in “Packet” mode. Although the GPRS is a transitional solution from the GSM network to 3G, yet it has prominent advantages in many aspects such as the transfer rate, wireless resource management and billing.

- Users will have a statically or dynamically allocated IP address in addition to a phone number.

- This feature is ideal for a majority of mobile applications.


Technical Parameters
Nominal Voltage12V DC
Voltage Range5V DC~32V DC
Idle Current13mA@5V
Communication Current210mA@5V
Maximum Current800mA
SIM Interface1.8V/3V
Electrostatic Discharge IEC61000-4-2Air discharge, 15kV, 10 cycles
Operating Temperature-25 °C ~ + 75 °C
Relative Humidity≤95%, non-condensing

1. GSM/GPRS (850/900/1800/1900 MHz)

2. Over the Air Update

3. Supports TCP/UDP/FTP/DNS protocol

4. Remote SMS configuration

5. Control via AT Commands

6. Supports USB2.0 slave mode

7. Update via USB Port

8. Data transfer


- Max. 85.6Kbps (DL), Max. 85.6Kbps (UL)

Reading Instruction


1. During the data transmission, RXD and TXD LED light blink.

2. Date cable socket to connect meter

3. Power supply socket

4. Antenna pedestal with SMA type

5. Network LED with red always blink

6. SIM card pedestal for installing SIM card
